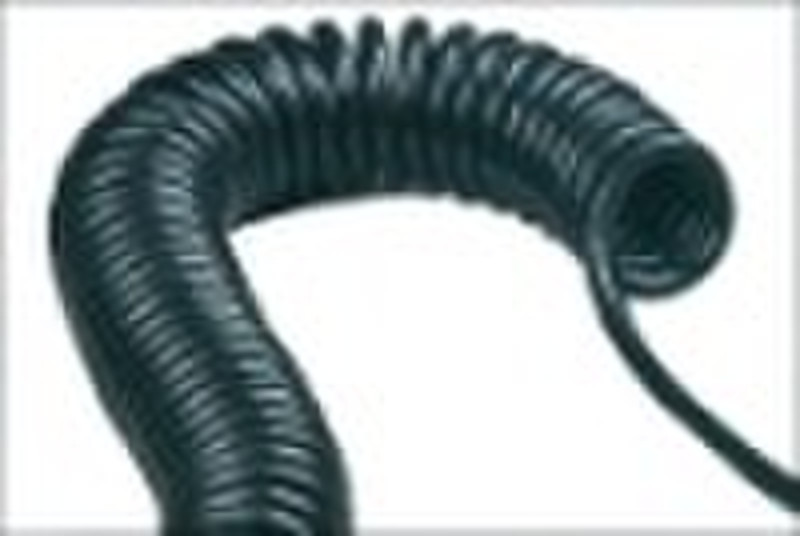

PU Coiled cable

1.Coiled cable Coiled cord Coiled cord spiral cord,coil cord 2.More than 16 years experience 3.VDE,UL APPROVAL 4.OEM,ODM OEM AND ODM orders are welcome Big qty and small qty are welcome Robust shielded electronic cable for data and signal transmission in electrical facilities for instrumentation systems, for the purpose of electrical machines and devices and medical technologie. Suitable for use in dry rooms and outdoor considering the temperature range. Special features largely resistant to oil conditional on PUR outer sheath largely resistant to grease, acids and bases free from lacquer damaging substances (during production) high abrasion resistance,high restoring force guaranteed high cycles and lifetime resistant to microbes,UV resistant Remarks conform to RoHS ratio of elongation: 1 : 4 both way elongated endings (radial/tangential) 200 mm We are pleased to produce special versions, other dimensions, core and jacket colours on request. Structure & Specifications Conductor material: copper strand blank Core insulation: PELON Overall shield: copper spiral screen tinned Outer sheath: PUR Sheath colour: black etc. Printing: optional Rated voltage: up to 0,14 mm² 100 V up to 0,25 mm² 250 V Testing voltage: 1000 V insulation resistance: at +20 °C ≥ 20 MΩ x km Operat. temp. moved min/max: -70 °C / +100 °C Standard: according to customers requirements
